Animation and Presentation Board

A presentation board made up of some renderings

The animation with the solid background

Rendering and making an animation

With appearances added, I was ready to start setting up cameras and the environment.

Working between the two screens to get a good view

Using the preview window to set up effective lighting

Rendering was a long process. The transparent plastic added significantly to the time, some images taking up to 2 and a half hours

A finished rendering

Setting up a 'collapse' for the animation

A spline for the camera to follow

Setting up the camera at the first keyframe - end keyframe has the same settings but the position is at 98% along the spline

The animation was an even slower process than the images. It would have been faster to do it in the CAD pools but I didn't have much chance of finding a free computer. I was able to leave it overnight which made the process possible.

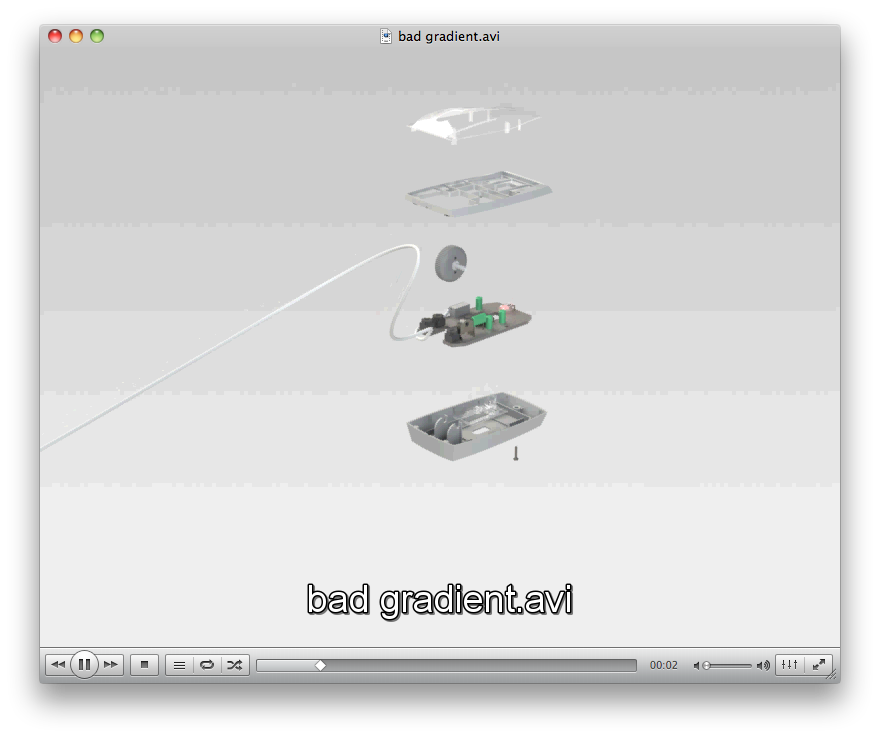

 I am running windows XP on parallels on a mac; this made it difficult to install the DivX codec, and when I succeeded it failed due to an error. I had to use the default compressor, which gave me a very low quality background gradient.

I tried the animation again, this time with a solid colour background. It fixed the problems that I ran into the first time.

Appearances Project 3

Added appearances to parts

I did most parts at the assembly level, but the circuit board and mouse wheel were a bit more detailed, so I did them at the part level.

Added appearances to the circuit board - for exploded view rendering and because the transparent button cover leaves it visible

Created a solid body inside the light but didn't merge with the rest of the part - I gave this a red LED appearance. It's not as bright as the real thing but it shows up just a little in the renderings.

The finished mouse with grey plastic upper & lower housings, transparent button cover.

The contour lines will be invisible in the renderings, leaving just the reflected light.

Assembly Project 3

I started bringing the existing components from the old mouse into an assembly with the new housings.

Lower housing with components

Starting to remove material from the upper housing solid body.

Adding some detail and structure running around and between the circuit board components.

The structure in the upper housing waves through the circuit board components and helps to hold it in place.

Adding details to fit the button cover

With the button cover piece - it will be made completely translucent using appearances

Cord management is very similar to that in the first mouse

Section through the middle of the mouse

Exploded view of the components

Creating solid bodies

Added thickness to the lower housing

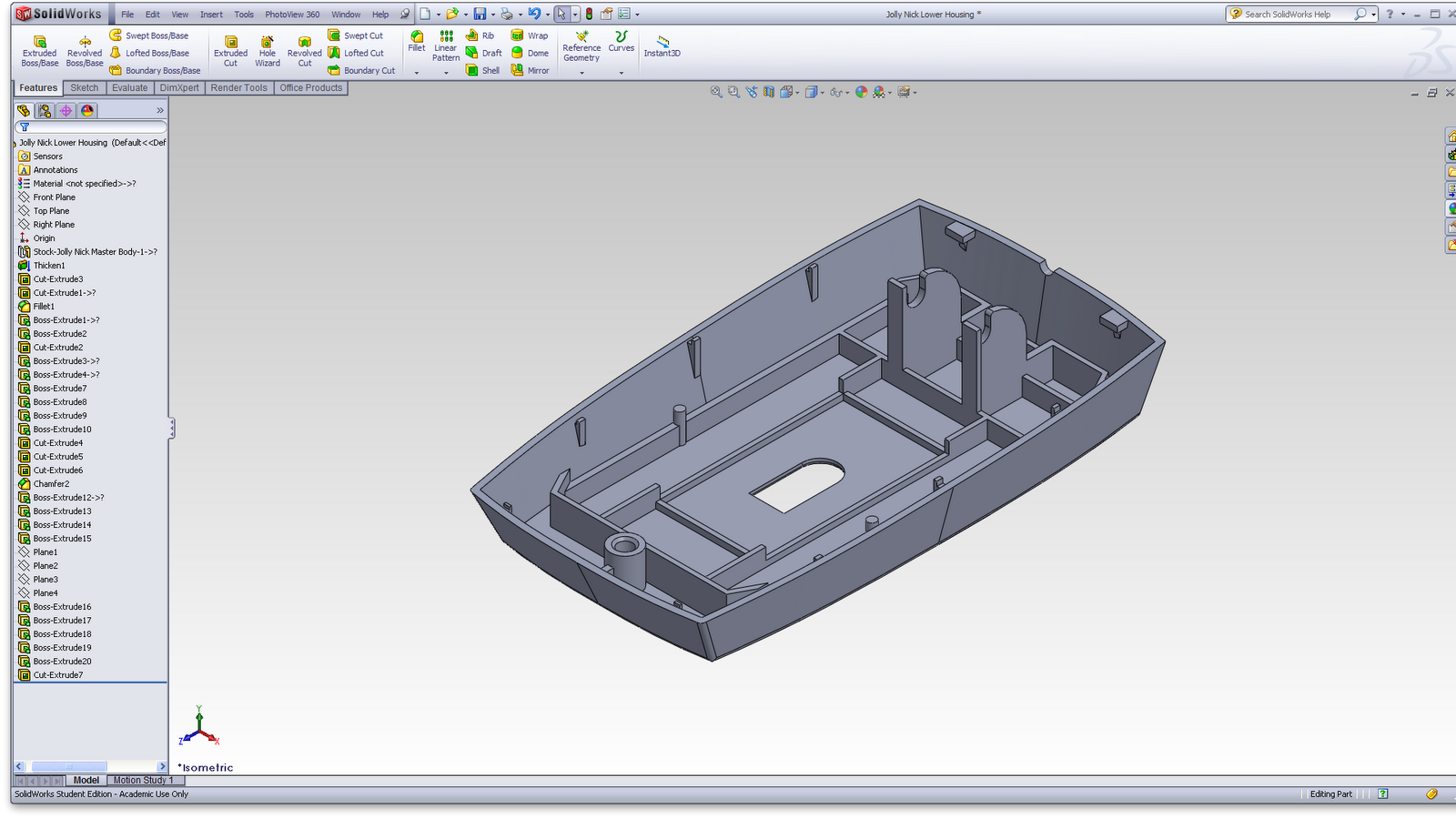

Added some details - These were largely generated by editing the part in an assembly with the existing circuit board/wheel/lens in place.

Continued adding details including interfaces between lower and the upper housings

Used a surface fill and a surface knit to generate a solid body for the upper housing.

As this part interacts with all the others, I added details in an assembly with everything else in place.

Added thickness to the buttons cover. This will eventually become completely transparent, showing only reflected light.

Details were added in an assembly with other parts.

Developing surfaces for project 3

I decided to start by creating some ruled surfaces for the lower housing.

This function creates a ruled surface starting from a surface edge and going in any direction to any length.

I extended the surfaces sideways and trimmed the excess to finish with a box.

These surfaces define the lower housing.

More ruled surfaces to start generating the upper housing.

Trimmed off the excess.

Side view

Added a loft to the back part of the upper housing.

Using projected curves to create crease lines for the button cover.

4 lofts and a boundary surface later...

Surface knits to create a surface body for each part, each one inserted into new part files.

Starting Assignment 3

I began this project by quickly sketching some ideas. Everything I was drawing began with a faceted base transitioning to organic curves in the upper parts.

Side views of a possible form

Side view of another form

Side view - Starting to develop the button part with faceted curved surfaces

Top view same as above

I started modelling in plasticine without much success. The symmetrical and faceted nature of the object make the form more suited to a material like polystyrene foam or a stiffer clay, but I decided to work with what I had readily available.

3/4 view showing 3 parts

Top view showing faceted curves on buttons cover

Side view showing intent for symmetrical bottom parts and a more organic top

At this point I decided to move into SolidWorks to start playing with surface functions and seeing what I could make.
